【DN-3409L】Intelligent cutting, efficient milling


release time:

2022-08-02



Core Highlights

1. Brand-new high-efficiency dust removal system

Efficient and intelligent dust removal system, away from dust troubles

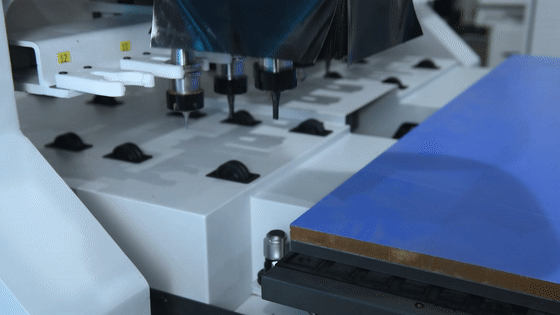

2. 12kW high-power spindle

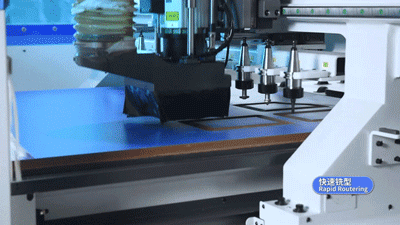

Achieve high-quality, high-efficiency milling



3. 1.5kW high-power servo

X/Y/Z moving speed up to 100/100/30m/min

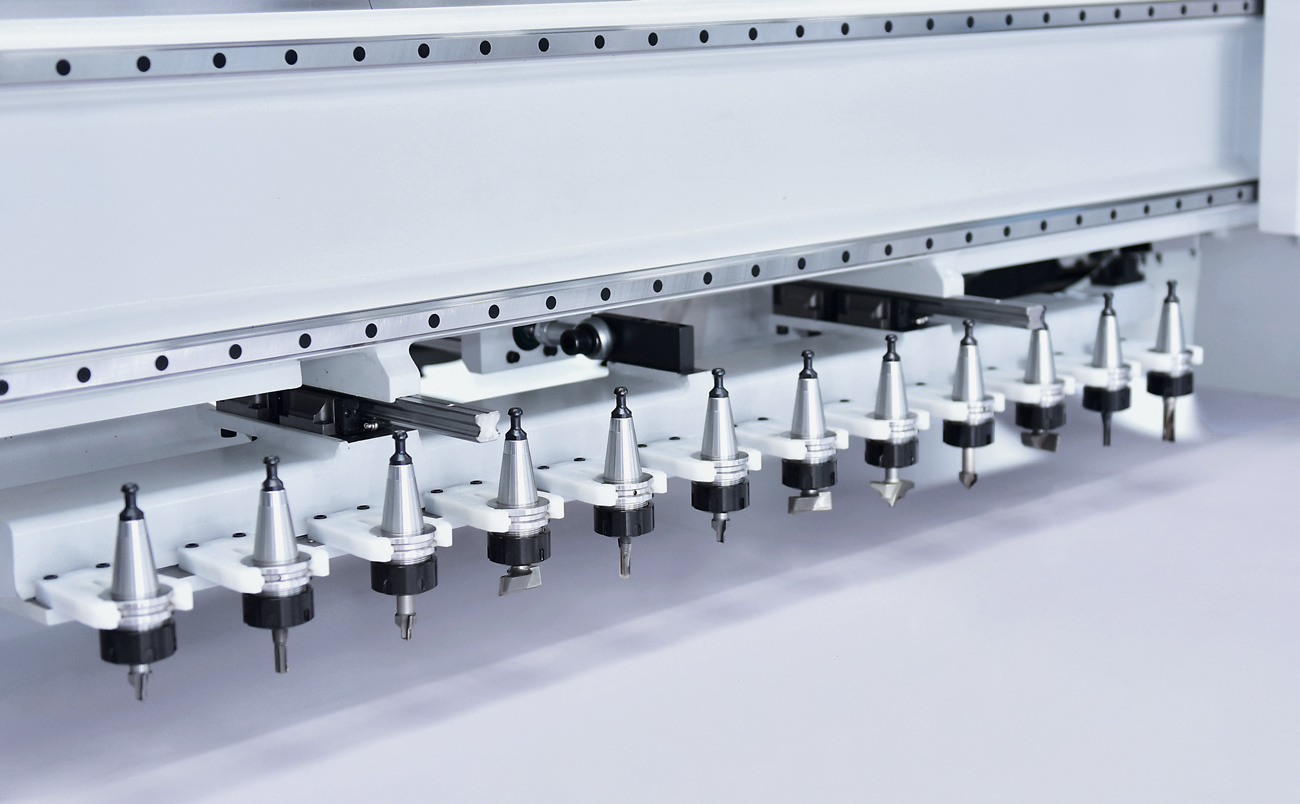

Four, 12 in-line tool magazine

Quick tool change, safe and reliable



5. 7-division double-layer metal vacuum chamber

Refine the vacuum zone, stronger adsorption force; the rack is annealed, and the equipment runs stably and reliably



key configuration

1. Precise tool setting instrument

One-click tool setting, higher efficiency



2. Embedded drawing/optimization function

Fast drawing, intelligent optimization, path simulation



3. Standard automatic grab/push mechanism

Fast and accurate positioning and guidance to realize automatic production



Connection scheme



technical parameter
