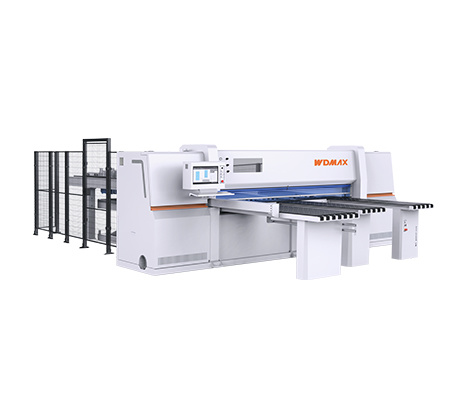

WDX-832L
Product category:
Standard optimization software
Saw blade quick release mechanism (patented technology)
The core transmission mechanism adopts high-precision reducer
Key words:
Standard optimization software
patented technology
transmission
Hotline:
WDX-832L
Product Advantages
Technical Parameter
| Model: WDX-832L | |
|---|---|
| Max. Feeding Speed（m/min） | 95 |
|
Saw carriage Return Speed（m/min） |
120 |
|
Sawing Speed（m/min） |
95 |
|
Main Blade Motor（kW） |
18.5 |
|
Total Power（kW） |
35 |
|
Maxi. Working Size (L*W*H)(mm) |
3180L*3180W*120H |
|
Max.rear feeding size (mm) |
2850*1525 |
|
Stack height With Pit (mm) |
500/1200 |
|
Overall Size (L*W*H)(mm) |
7670L*5630W*1890H |
