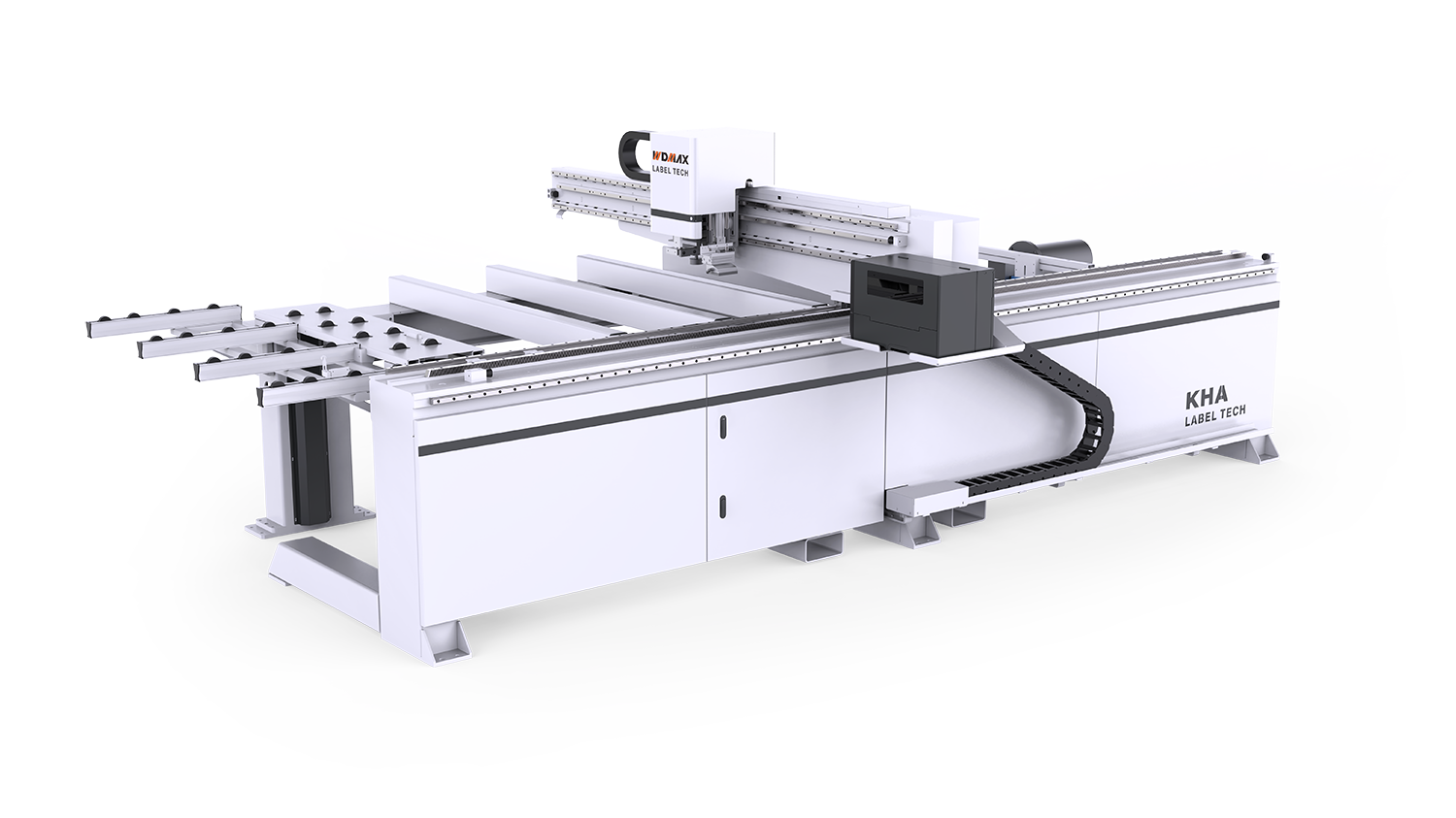

KHA-1610TS
Product Advantages
1. This equipment is mainly used for the processing of loading and labeling of various types of artificial boards.
2. The loading rack can bear 3500kg;
3. The thickness of the stacking plate can be stacked at a height of 500mm;
4. Automatically align the function to ensure the correct standards;
5. Pre-positioning function of loading to achieve one-step loading;
6. The push-up mechanism of the labeling configuration can automatically correct the position of the labeling plate;
Technical Parameter
| Rated pressure of gas source (MPa) | 0.65MPa |
| 2.Panel Length（mm） | 3100mm |
| 3.Panel Width（mm） | 1860mm |
| 4.Panel Whickness（mm） | 10-25mm |
| 5.Stack Height（mm） | 500 |
| 6.Weight（KG） | 3500 |
|
7.Total Power（KW） |
3.7KW |
|
8.Max.Moving Speed（m/min） |
50/60（X/Y） |
