WE-395JCU
Product category:
Bevel edge bander，Fixed 45° is not adjustable
Key words:
Hotline:

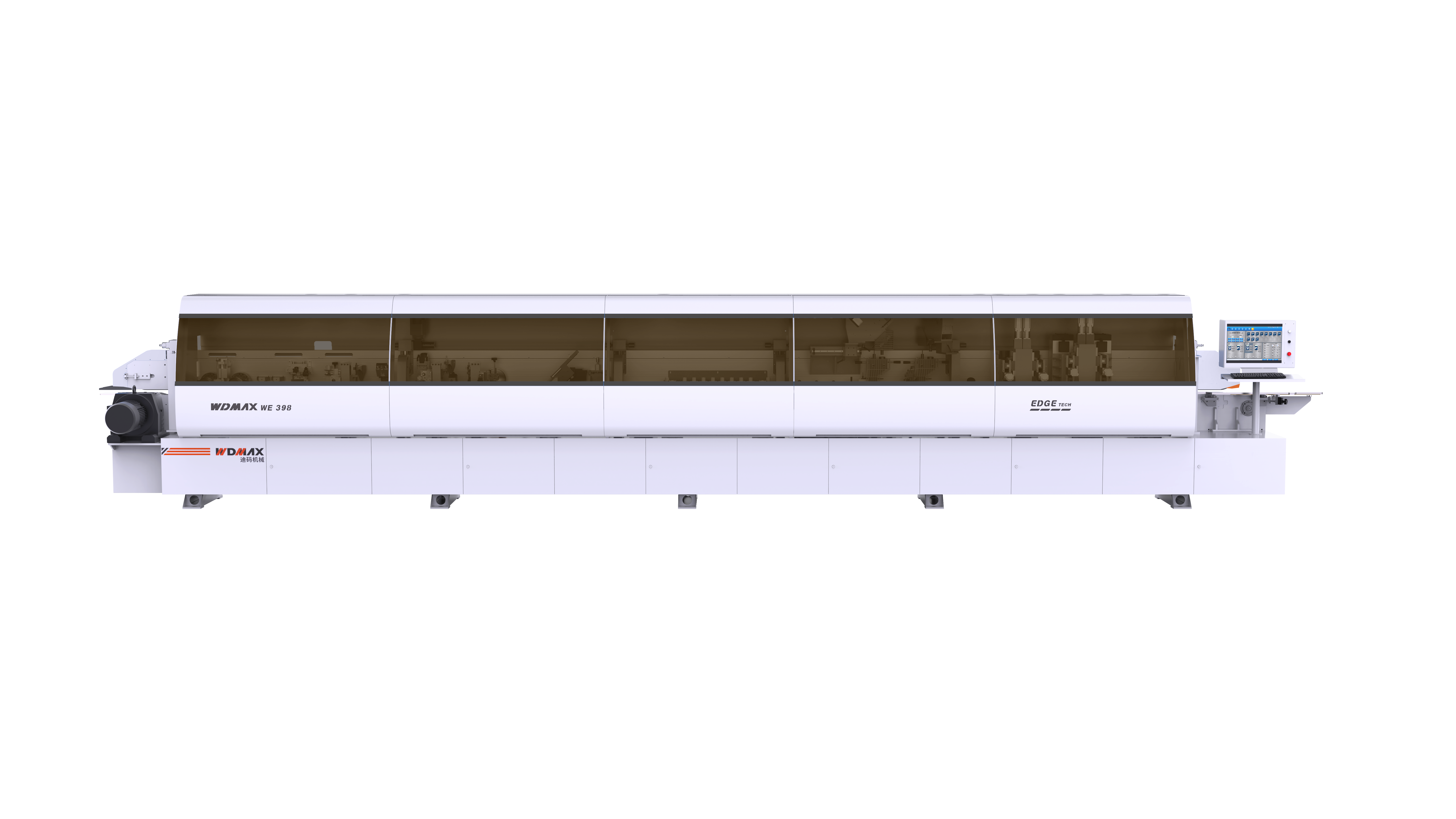

WE-395JCU
Product Advantages
固定45°不可调节，斜边可为全斜或部分斜即半斜，直边尺寸范围为 0-10mm。
Fixed 45° is not adjustable， The bevel side can be fully beveled or partially oblique, that is, semi-oblique, and the dimensions of the straight side are 0-10mm.
斜直一体双色PUR涂胶压贴
Bevel/straight edget PUR glueing&pressing
配备正反刃的直边预铣和斜边预铣机构，减少爆边和崩带问题
The straight edge pre-milling and beveled edge pre-milling mechanism equipped with positive and negative blades reduces edge chipping and breakout issues.
Technical Parameter
| WE-395JCU |
|---|
| Feeding Speed(m/min) | 14 |
| Tape thickness(mm) | 0.45-1.5 |
| Panel Thickness(mm) | 9-25 |
| Panel Length(mm) | ≥150 |
| Panel Width(mm) | ≥135 |
| Min. Panel Size(mm) | 150*135 |
| Total Power（kW） | 27.85 |
| Overall Size (L*W*H)(mm) | 7087L*830W*1700H |
| Size&QTY of Dust Hood | Φ125*8 |
Product Video
WE-395JCU
319
