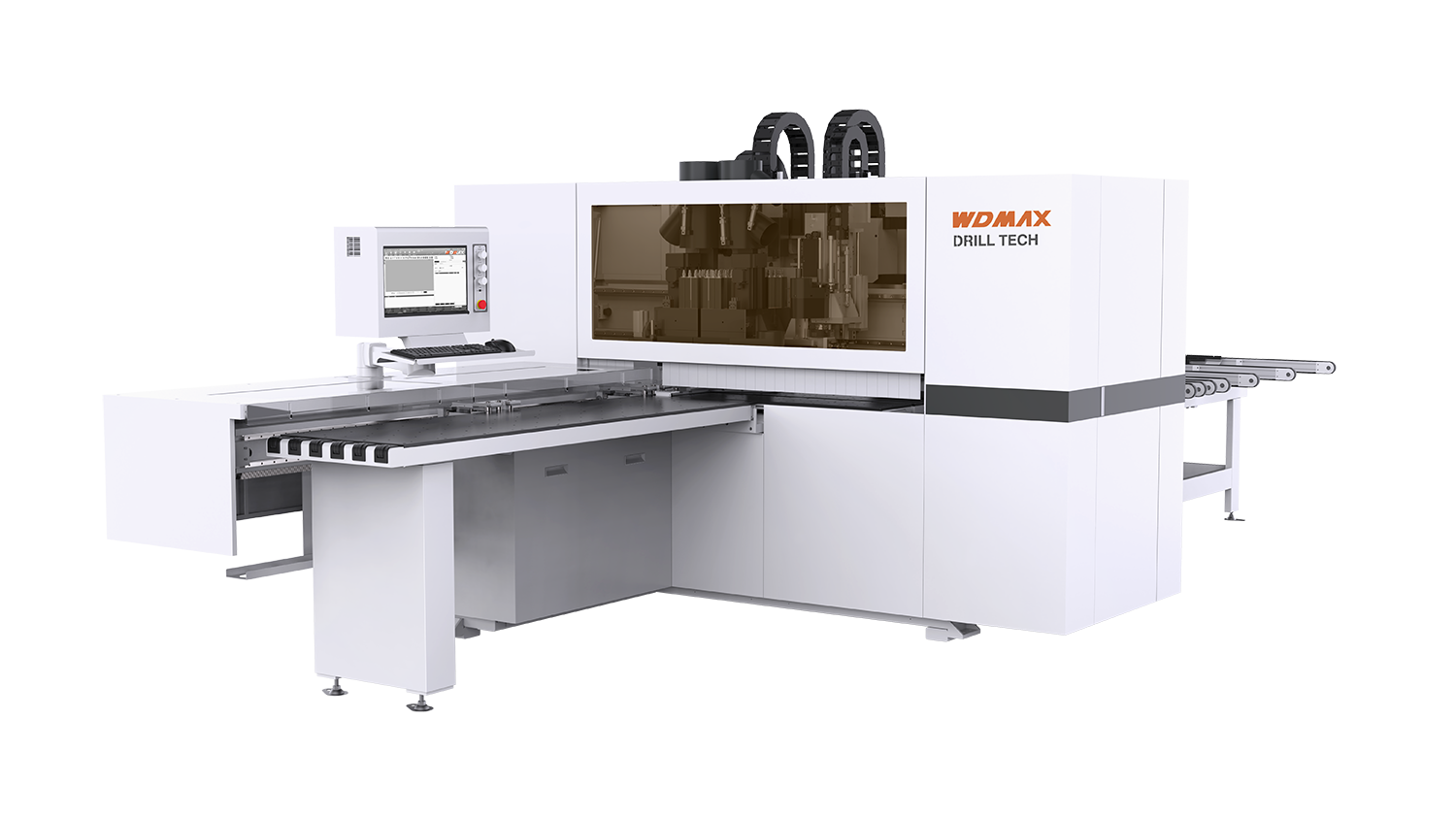

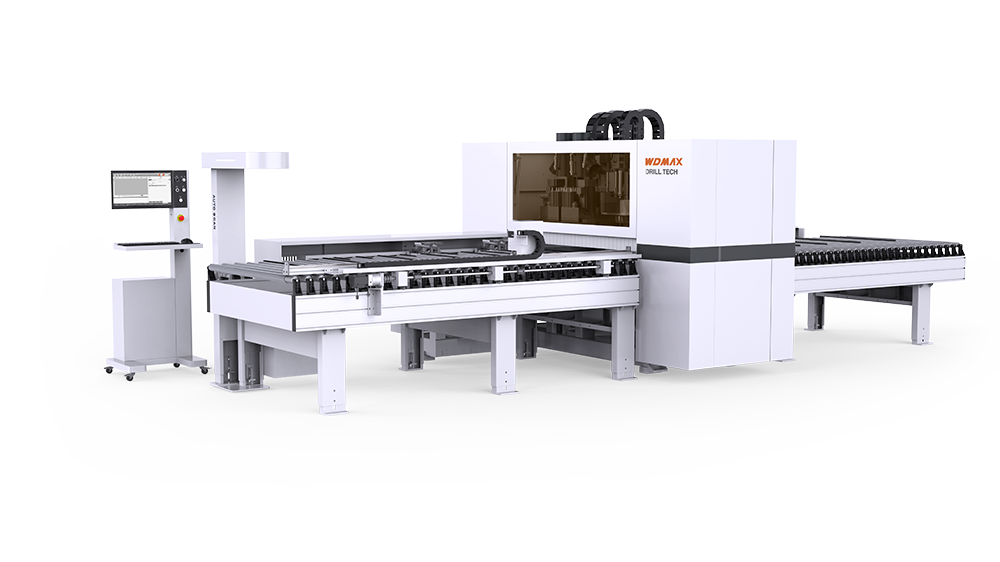

DN-612KSZA
Product category:
Key words:
six-sided drill
Double diamond bag
Hotline:
DN-612KSZA
Product Advantages
Technical Parameter
| Model: DN-612KSZA | |
|---|---|
|
Panel Length（mm） |
200-2800 |
|
Panel Width（mm） |
45-1220 |
|
Panel Thickness（mm） |
9-60 |
|
Maxi. Feeding Speed (m/min) |
140 |
|
Number of Drills |
Upper vertical drill 26V + horizontal drill 12H + lower vertical drill 9V |
|
Spindle (KW) |
1*5.5 1*3.5 |
|
Total Spindle (KW) |
30.12 |
|
Overall Size L*W*H (mm) |
7100L*3140W*2190H |
|
Size&Qty of Dust Outlets |
Ø200*2+Ø150*1+Ø100*1 |
Product Video
