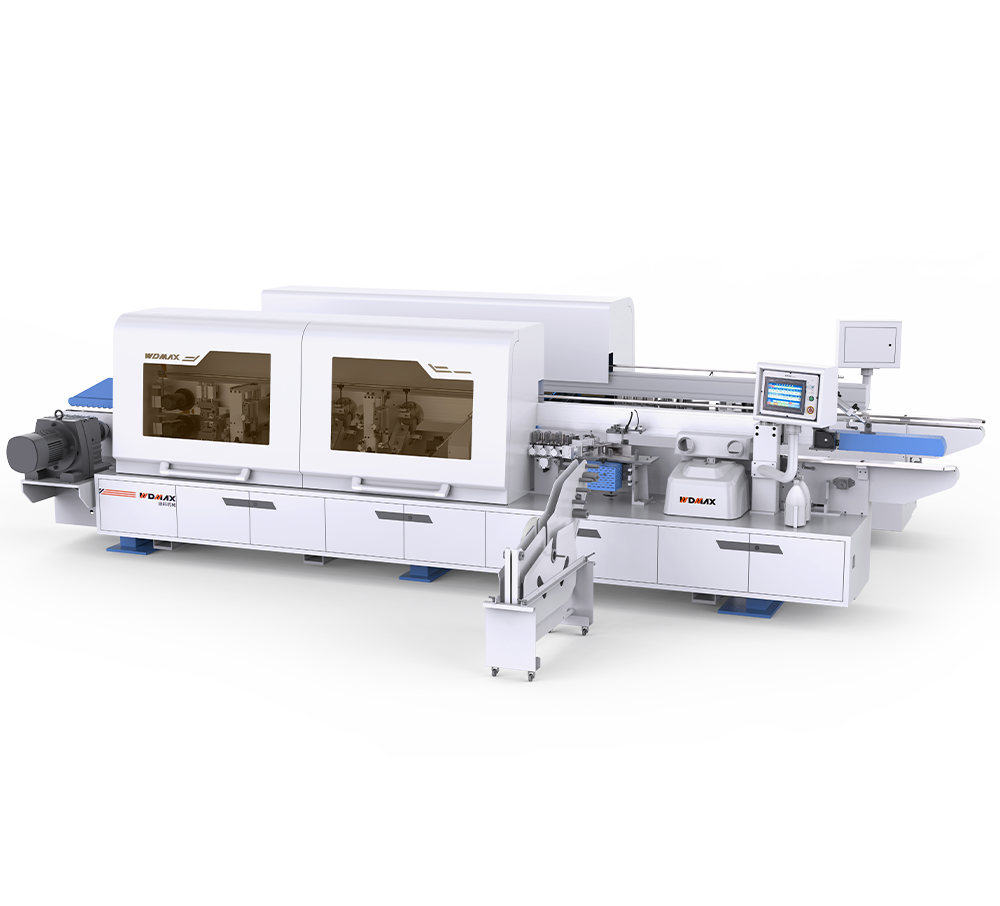

WE-2328S
Product category:
China's first and complete heavy-duty dual-end linear automatic edge sealing machine
Key words:
Hotline:
WE-2328S
Product Advantages
实现木板的双边同步封边
Realize bilateral synchronous edge sealing of wooden boards
采用滚珠丝杆传动控制，高精度自动定位
Adopt ball screw transmission control, high-precision automatic positioning
具有重型横向移动支架和精密的位置控制驱动系统，基控制界面可以方便可靠的与生产线控制系统集成
With heavy duty lateral moving bracket and precise position control drive system, the base control interface can be easily and reliably integrated with the production line control system
Technical Parameter
| 型号：WE-2328S | |
|---|---|
|
进给速度 Feeding Speed(m/min) |
13-18 |
|
封边带厚度 Tape thickness(mm) |
0.4-3 |
|
工件厚度 Panel Thickness(mm) |
9-60 |
|
最小板尺寸 封边尺寸为长边 Min. Panel Size(mm) |
285*285 |
|
总功率 Total Power(kW) |
25.14 |
|
外形尺寸 Machine Size长(L)宽(W)高(H)(mm) |
5542L*4300W*1730H |
|
吸尘口尺寸及数量 Size & QTY of Dust Hood |
φ125*8 |
Product Video
