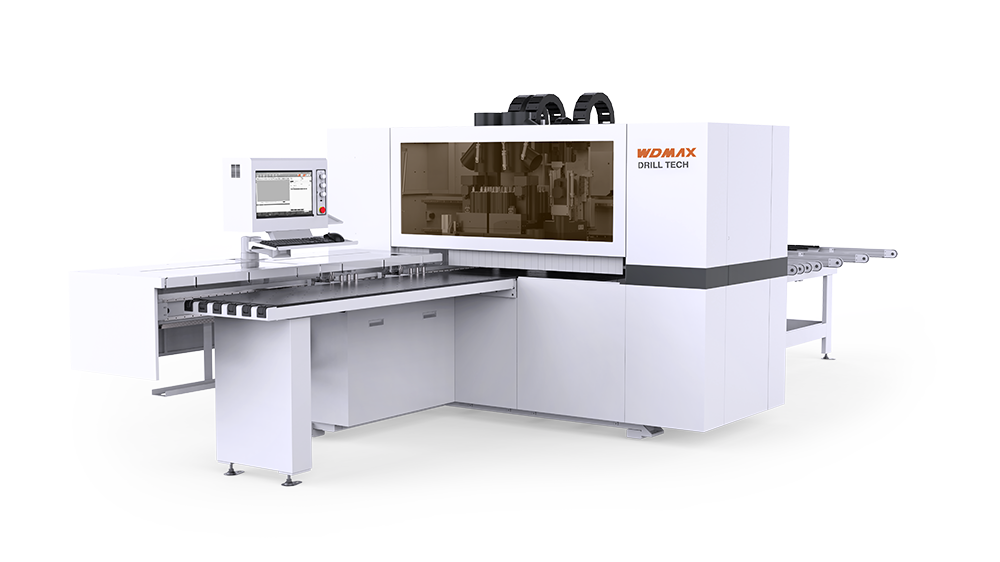

DN-612KS
Product category:
Jump drilling, double the efficiency
Automatic conveying dust removal system
Add gripper guard
Key words:
dn-612ks
Hotline:
DN-612KS
Product Advantages
Technical Parameter
| Model: DN-612KS | |
|---|---|
|
Panel Length（mm） |
70-2800 |
|
Panel Width（mm） |
50-1200 30-50 (L≤1000) |
|
Panel Thickness（mm） |
9-60 |
|
Maxi. Feeding Speed (m/min) |
140 |
|
Number of Drills |
Upper vertical drill 26V + horizontal drill 12H + lower vertical drill 9V Upper 26V+12H+Lower 9V |
|
Spindle (KW) |
1*5.5 1*3.5 |
|
Total Spindle (KW) |
28.22 |
|
Overall Size L*W*H (mm) |
6040L*2855W*2190H |
|
Size&Qty of Dust Outlets |
Ø200*2+Ø100*2 |
