Excellent value for money, dazzling with ability | High-speed edge banding machine WE-496GE
release time:
2022-07-05

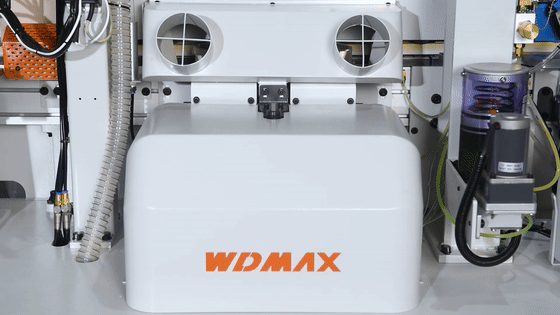

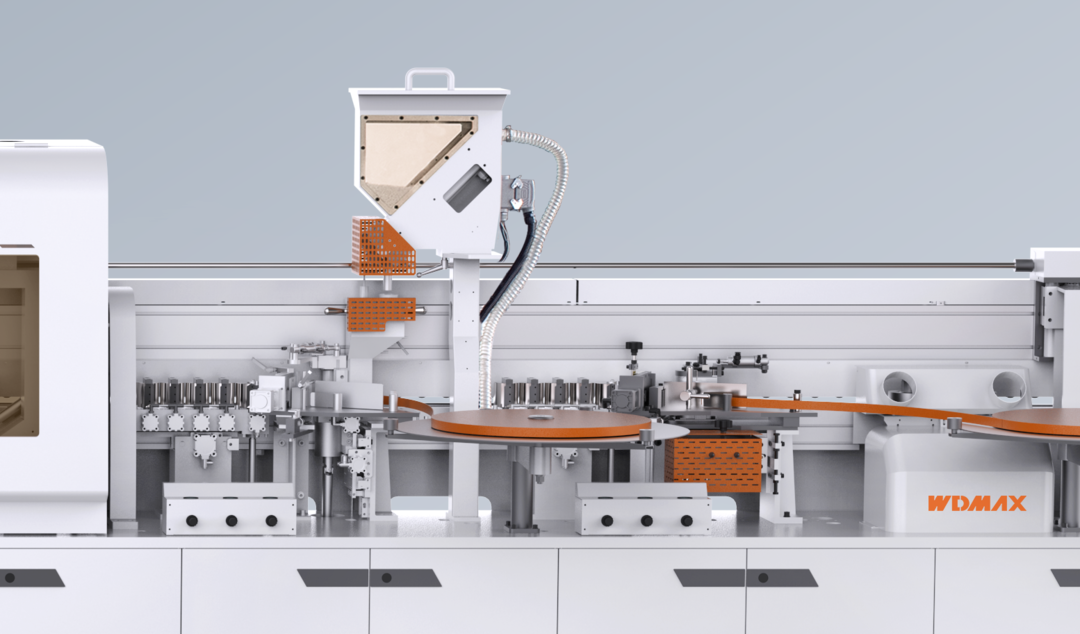

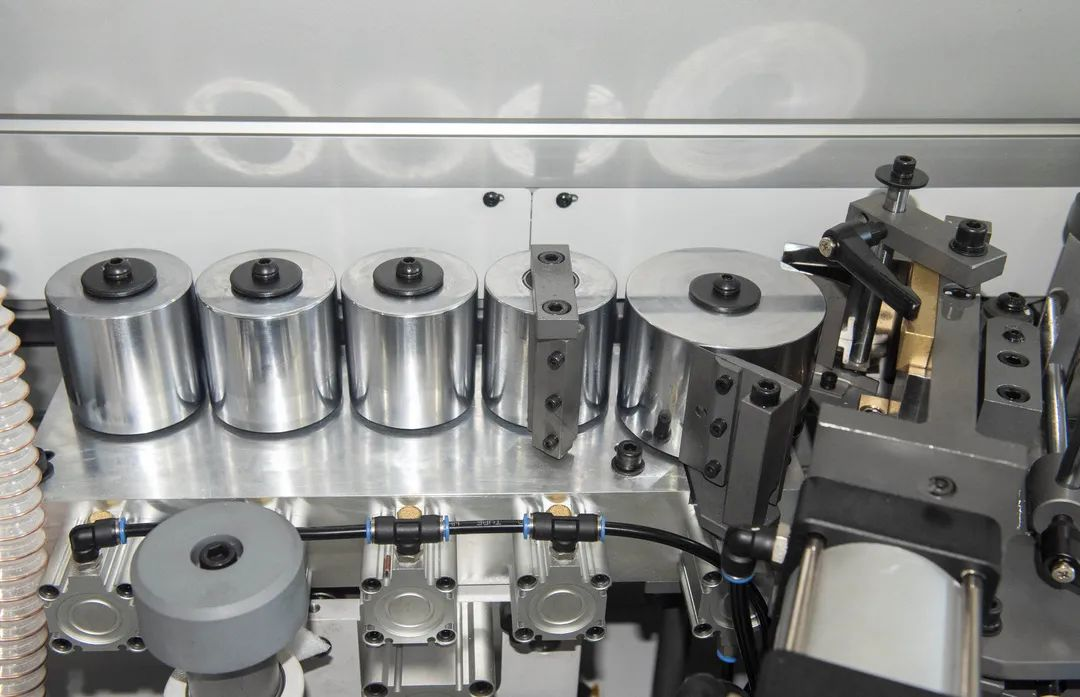

PUR port is reserved, which can quickly switch between two glues to meet the production needs of different glue edge sealing Automatically adding glue particles, timely and automatic glue supply
Technical parameters · Parameters
|
model Model |
WE-496GE |
|
Feed rate Feeding Speed（m/min） |
20-26m/min |
|
Edge band thickness Tape Thickness（mm） |
0.4-3mm |
|
Workpiece thickness Panel Thickness（mm） |
10-60mm |
|
Workpiece length Panel Lenght（mm） |
L≥120mm |
|
Workpiece width Panel Width（mm） |
W≥60mm |
|
total power Total Power（kW） |
33.84kW |
|
Dimensions Overall Size Length (L) Width (W) Height (H) (mm) |
11315L*990W*1960H mm |
|
Size and quantity of dust suction ports Size&QTY of Dust Hood |
100*5+125*6 |
