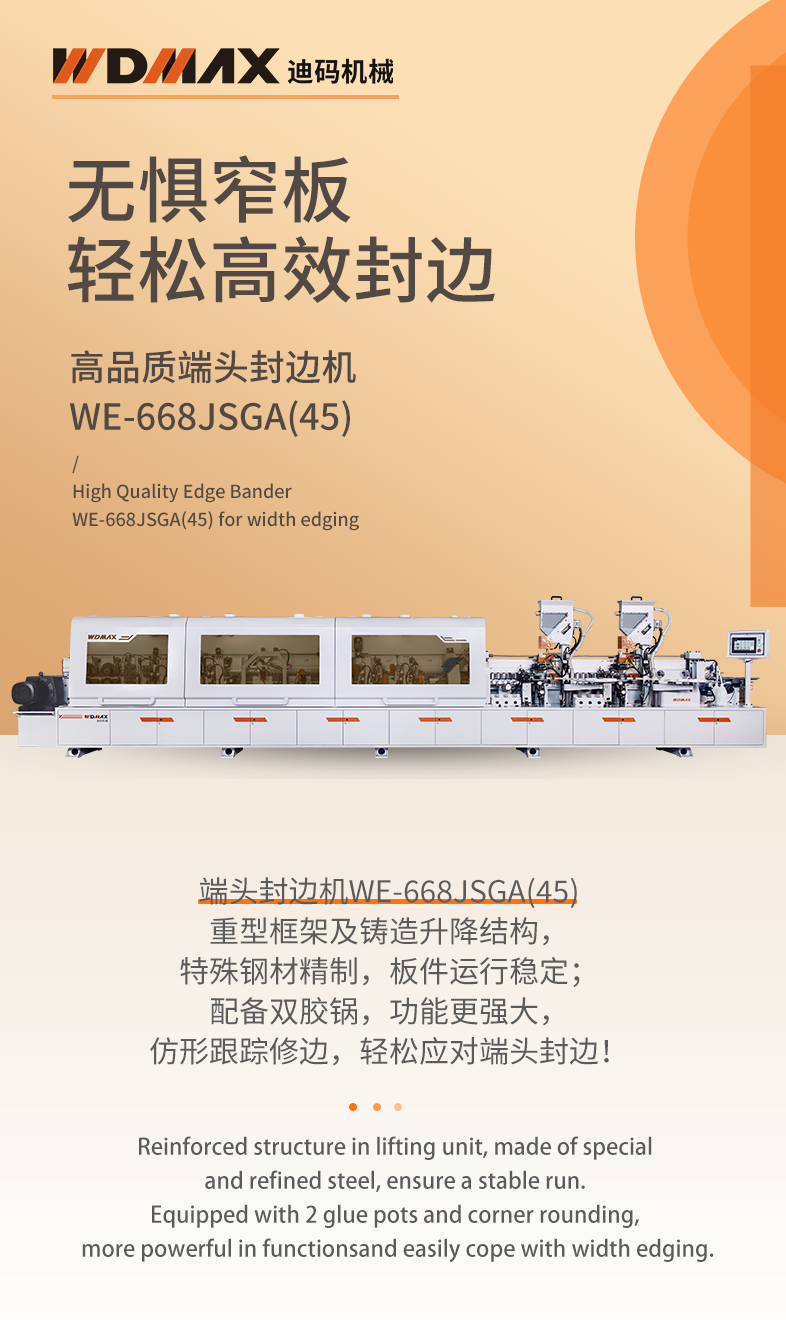

No fear of narrow board, easy and efficient edge banding: WE-668JSGA(45)
release time:
2022-07-05

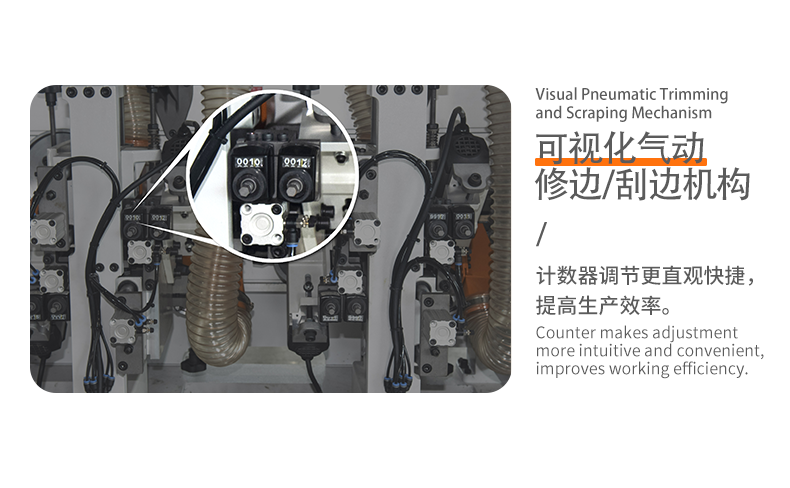

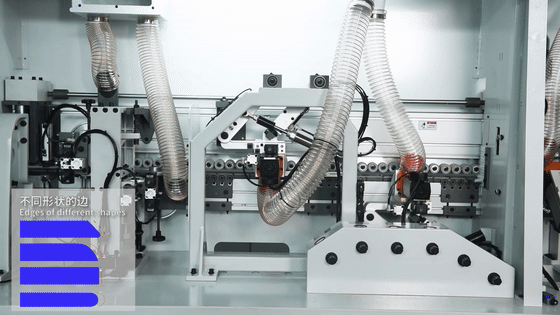

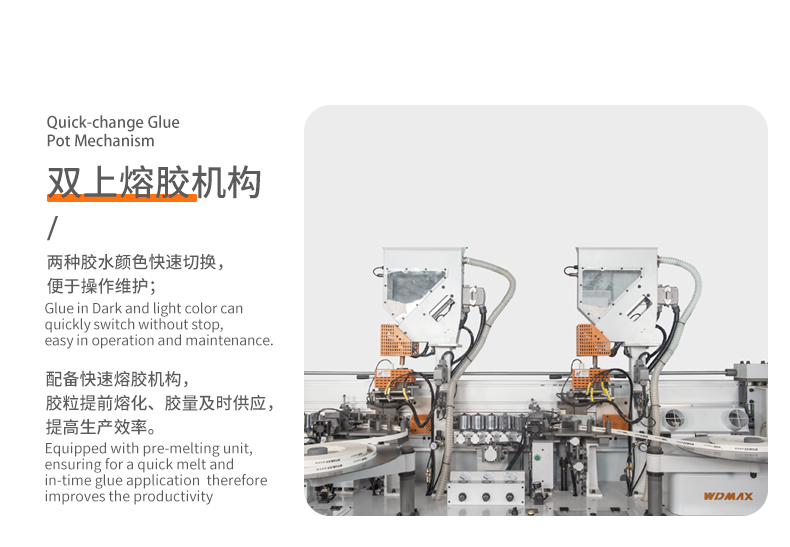

End edge banding machine WE-668 JSGA (45) heavy-duty frame and casting lifting structure, special steel refining, stable operation of the plate; equipped with double glue pot, more powerful, profiling tracking trimming, easy to deal with end edge banding !
technical parameter
Parameters
|
Feed rate Feeding Speed（m/min） |
15-23 |
|
Edge band thickness Tape thickness（mm） |
0.4-3 |
|
Workpiece thickness Panel Thickness（mm） |
10-60 |
|
Workpiece length Panel Length |
end sealing W≥40, L≥200 |
|
Workpiece width Panel Width |
long edge sealing 80＞W≥45, L greater than or equal to 300 |
|
Minimum version size Edge sealing size is long side Min.Panel Size（mm） |
|
|
Vacuum cleaner size and quantity Size&QTY of Dust Hood |
100*3+125*5 |
|
total power Total Power（kW） |
29.55 |
|
Dimensions Overall SizeLength(L)Width(w)Height(H)(mm) |
9130L*990W*1960H |
