【New Recommendation】DN-2409KS Single Spindle + Double Saw Blade CNC
release time:
2022-07-05
Saw blade processing can effectively improve the cutting efficiency. It can be matched with the main shaft to reduce residual materials and waste and improve the utilization rate of plates. 6kW spindle, 7.5kW Main saw +1.5kW scoring saw, 0 and90 degree quickly switchingSaw blade processing, improve the cutting efficiency, reduce material waste, improve the utilization rate of plates
Core Highlights
No. 1 saw blade + spindle
Saw blade + Spindle
6kW spindle, 7.5kW+1.5kW main and auxiliary saws, 0° and 90° quick switch
Saw blade processing can effectively improve the cutting efficiency. It can be matched with the main shaft to reduce residual materials and waste and improve the utilization rate of plates.
6kW spindle, 7.5kW Main saw +1.5kW scoring saw, 0 and90 degree quickly switchingSaw blade processing, improve the cutting efficiency, reduce material waste, improve the utilization rate of plates
No. 2 saw seat assembly
Saw carrier assembly

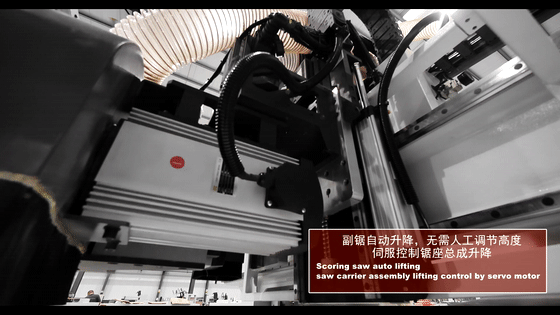

The auxiliary saw is automatically raised and lowered, no need to manually adjust the height, and the servo control of the saw seat assembly
Scoring saw auto liftingsaw carrier assembly lifting control by servo motor
No. 3 Treasure Yuan System
Numerical Controller System

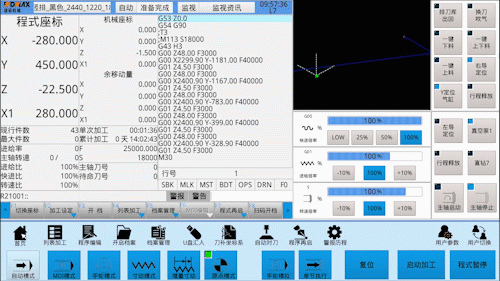

China Taiwan Baoyuan bus absolute value control system, clear interface, easy to operate
Taiwan, China Leading Numerical Controller System, simple interface, easy to operate
No. 4 Double Press Roller
Double press roll
Double pressure rollers, effectively ensure the machining accuracy
Double pressing rollers, ensuring the machining accuracy
No. 5 Vacuum Suction Cup
Vacuum suction cup
Front vacuum suction cup, automatically grab the horizontal head plate and the remaining material
Front vacuum suction cup, automatically catch various board
Important configuration
No. 1 Grab mechanism
Gripping mechanism
The grabbing device automatically feeds the material, and the plate is automatically aligned and positioned
Standard with gripper, automatic loadingWorkpiece automatic alignment
No. 2 Pushing Mechanism
Pushing mechanism
Pushing device, automatic unloading
Standard with pusher, automatic unloading
No. 3 Vacuum Air Pump
Vacuum pump
German Beck vacuum pump, stronger adsorption, more environmentally friendly
Becker vacuum pump has stronger adsorption capacity and is more environmentally friendly
Connection scheme
technical parameter
| DN-2409KS parameter PARAMETER | |
|---|---|
|
Spindle: Main spindle |
6kW |
|
Saw blade: Saw blade |
7.5kW & 1.5kW |
|
Maximum processing range X/Y/Z: Max working size（X/Y/Z） |
2860*1260*40（mm） |
|
Top speed: Max moving speed（X/Y/Z） |
80/80/20（m/min） |
|
Vacuum pumping speed: Vacuum capacity |
244（m 3 /h） |
|
Air pressure: Pressure |
0.6-0.7（Mpa） |
|
Dimensions: Machine size（L/W/H） |
4960*2550*3000（mm） |
|
Total power: Total Power |
28kW |
