Efficient and intelligent manufacturing to create a "speed factory" | Left and right connection of the edge banding machine


release time:

2022-07-05

The diversification of high-end customization of furniture puts forward more flexible processing and precision stability requirements for processing equipment. Edge banding is an important process in the furniture manufacturing process, and its efficiency and quality affect the effect of the entire furniture production process. In conventional production, the left and right edge-sealed panels require 2 workers to perform 2 operations, and the "mass customization" of furniture is subject to certain production restrictions.

1

Product advantages

Configuration Features





technical parameter

PARAMETERS



model

Model

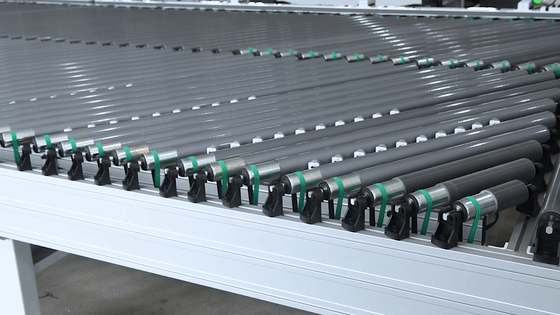

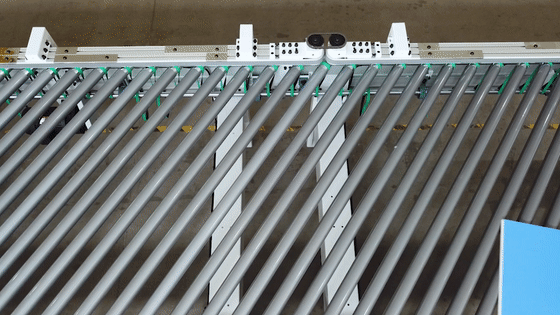

Technical parameters of left and right connection conveying equipment



KHC-605/FUL KHC-608/Family KHC-608D/DH

Sheet length

Panel Length

200-1200 200-2800 200-2800

Sheet width

Panel Width(mm)

200-1200 200-1200 200-2800

Sheet thickness

Panel Thickness(mm)

10-60

Platform feed rate

Feed Speed(m/min)

15-23/20-26

Dimensions (L*W*H)

Extermal Dimensions(mm)

5080*1550*1380 (605)

5290*1550*1380(605H)

7000*1550*1380 (608)

7700 * 1550 * 1380 (608H)

8800*3140*1380(608D)

9500*3140*1380(608DH)

power

Power(kW)

2.05

2.05

3.55/3.80
