Core Highlights Control system upgrade Control System Upgrade Using EtherCAT bus control system, microsecond response speed. Applies EtherCAT bus control, microsecond response speed.

Core Highlights



Control
System Upgrade


Using EtherCAT bus control system, microsecond response speed.
Applies EtherCAT bus control, microsecond response speed.



Software Technology Upgrade
Software Upgrade


Multi-threaded synchronous operation, optimized mechanism action coordination, efficient and stable operation of drilling processing.
Multithread and synchronous run as well as optimization of motioncoordination make drilling in more efficiency and stability.


Clamps Max.Moving Speed ​​135m /min


Fast positioning and processing to improve processing efficiency. .
Fast positioning for drilling improves efficiency. coordination make drilling in more efficiency and stability.


Dilling on Small Boards


Satisfy drilling on small boards.coordination
make drilling in more efficiency and stability.


Min.workpiece size: 70* 35mm



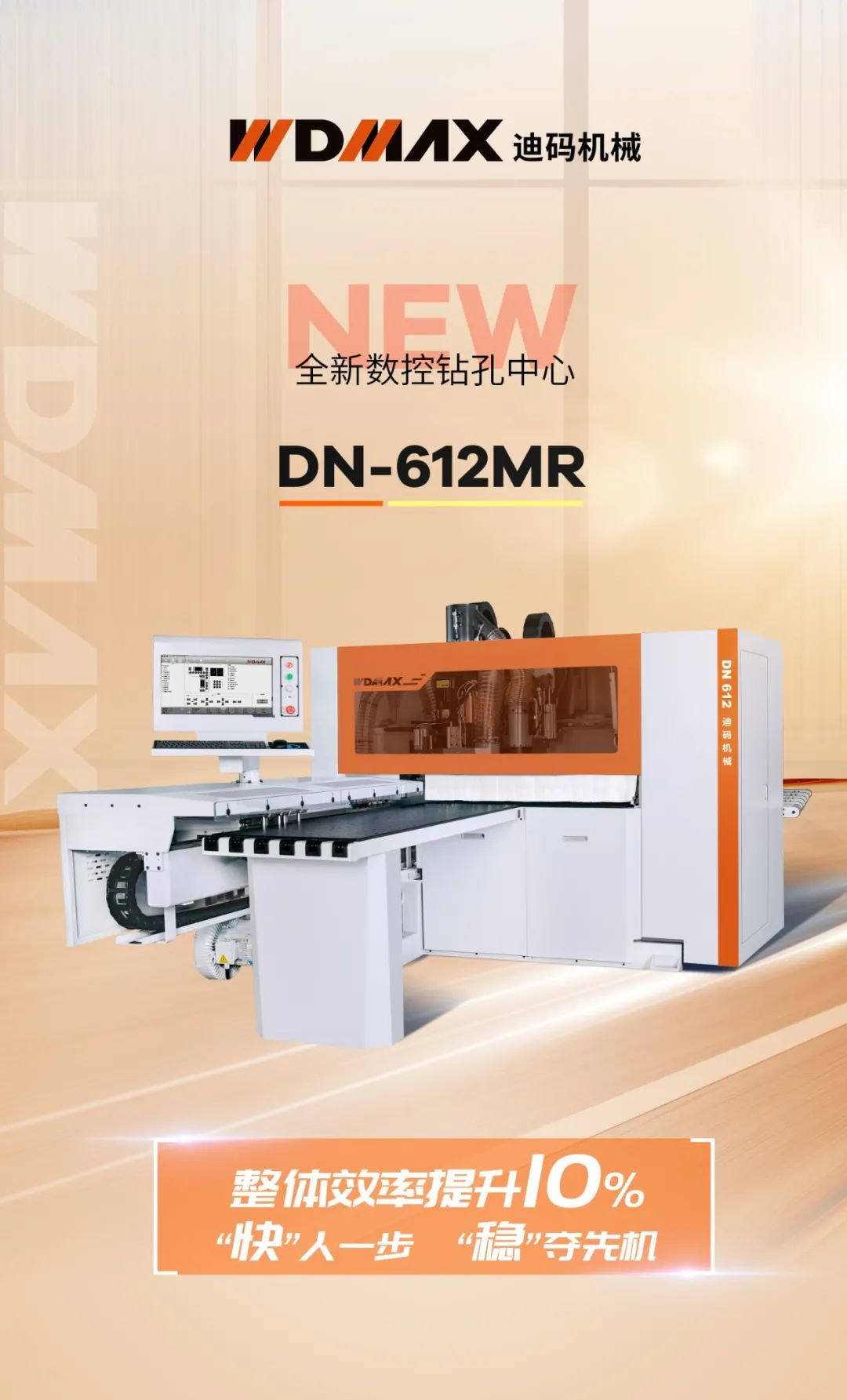

New

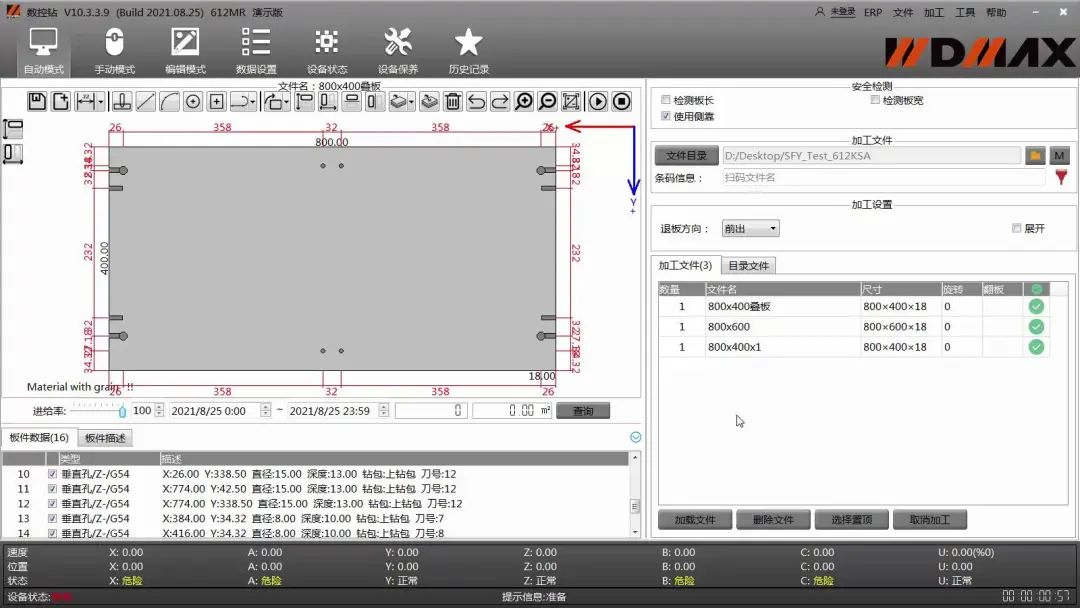

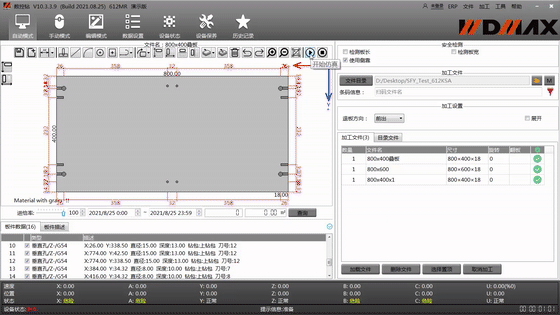

Version Software with Comprehensive Functions


Optimal drilling path design, efficient machining.
Optimal diling path makes machining in high eficiency.

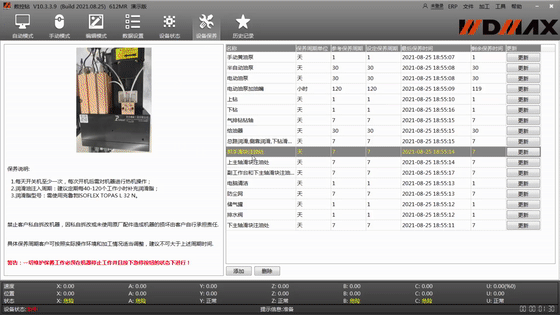

Real-time statistics of processing records.
Real-time statistics of machining records.


Configuration Features



Dual Gripper Long Rail Rack
Long Clamp Stroke Equipped


The gripper guide rail is 5500mm, and the long plate can be processed at one time;
the number of hand changes is reduced, and the processing efficiency is improved. The main structural parts are annealed.

Clamp Stroke: 5500mm, One-time feeding and machining with 2800mmlong panel, reducing times in clamp changes and improving drilling efficiency.


Dilling Speed ​​Controlled by Inverter


Quickly switch the drilling speed according to the size of the aperture, improve the drilling quality and reduce the edge burst .
Fast change diling speed according to holes diameter, improving dilling quality and reducing burst on panel edge.long panel, reducing times in clamp changes and improving drilling efficiency.

Pressurization
System Configured


Increase drilling air pressure to ensure consistent drilling depth and improve drilling efficiency.
Increase the drilling pressure, ensures Hole-depth consistent, and improves drilling efficiency. long panel, reducing times in clamp changes and improving drilling efficiency.

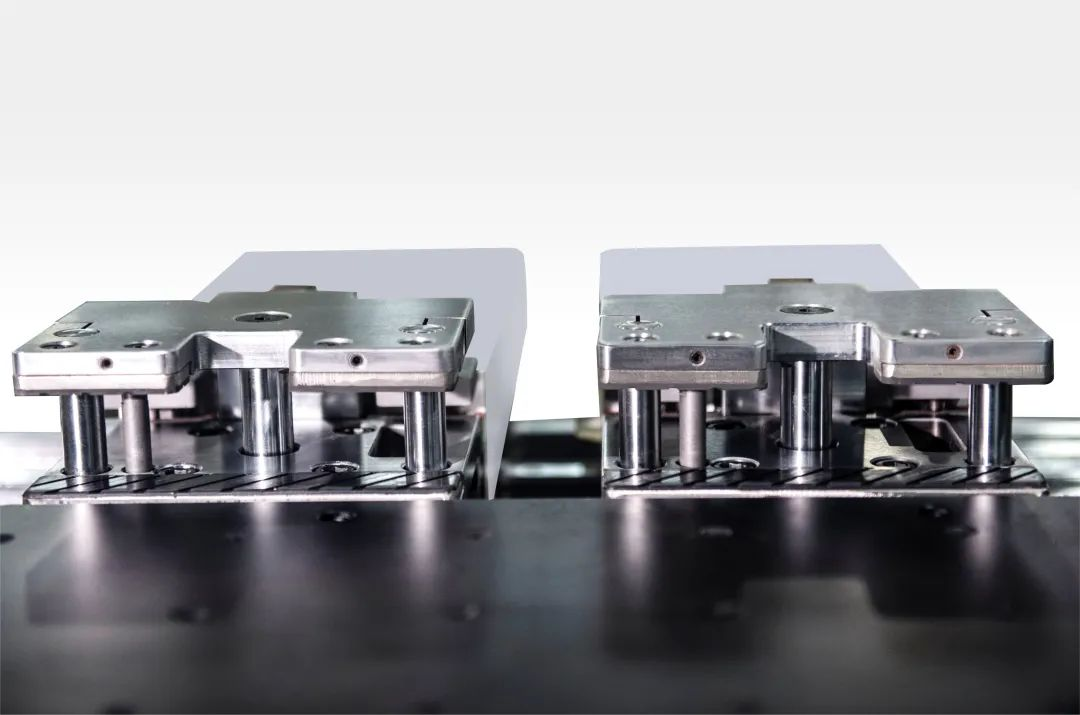

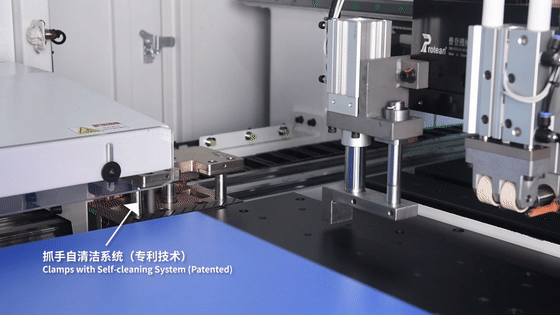

Clamps with Self-cleaning System (Patented )


Clean up the dust on the surface of the plate and improve the machining accuracy.
Clean off dust on panel surface, and improves milling accuracy.

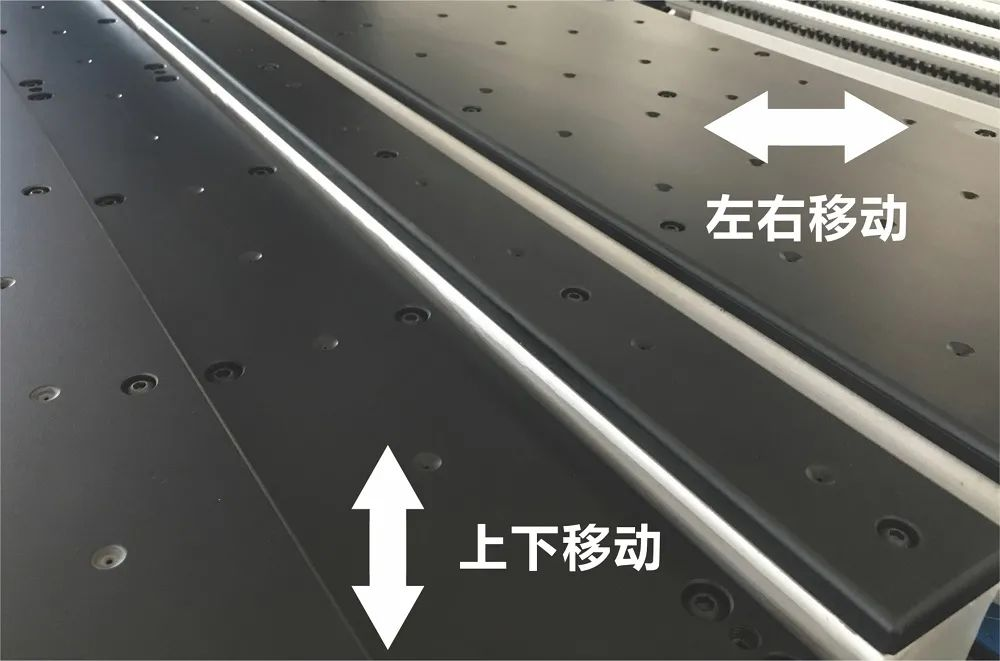

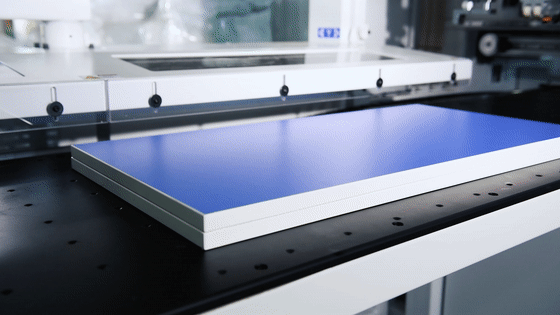

Air-float Worktable (Patented


Intelligently supports drilling, improves drilling accuracy, and reduces plate scratches and collisions.
Intelligently support drilling machining, improves drilling accuracy, reduce panel scratches and hit against.

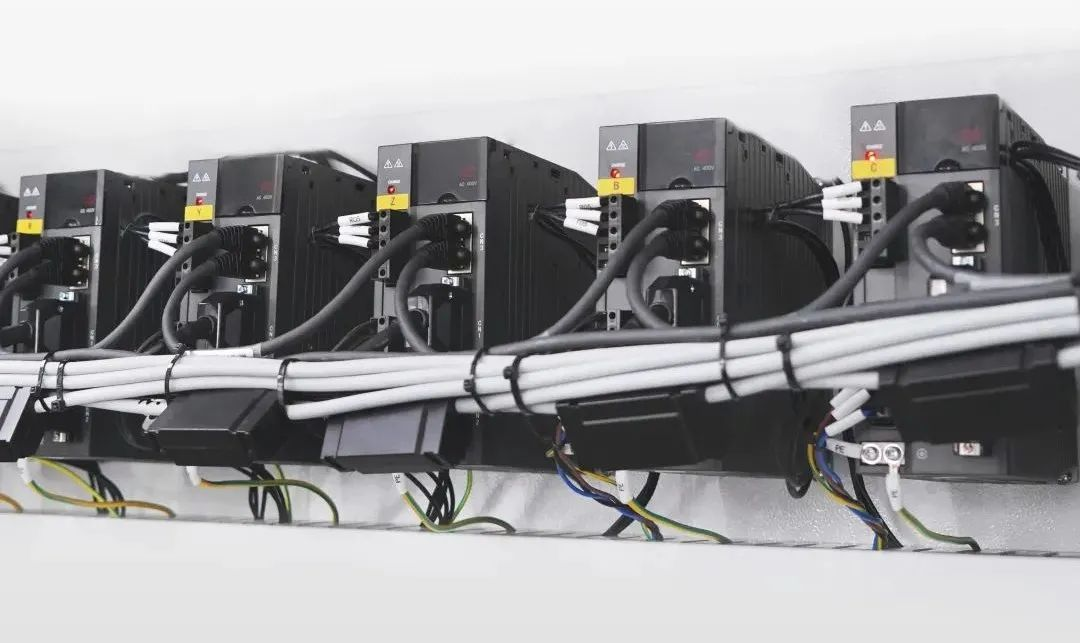

Absolute
Value Servo Bus Control System


There is no need to return to the origin to operate, and it can be used immediately after power on.
No need for homing, and machine can be used immediately power on.reduce panel scratches and hit against.

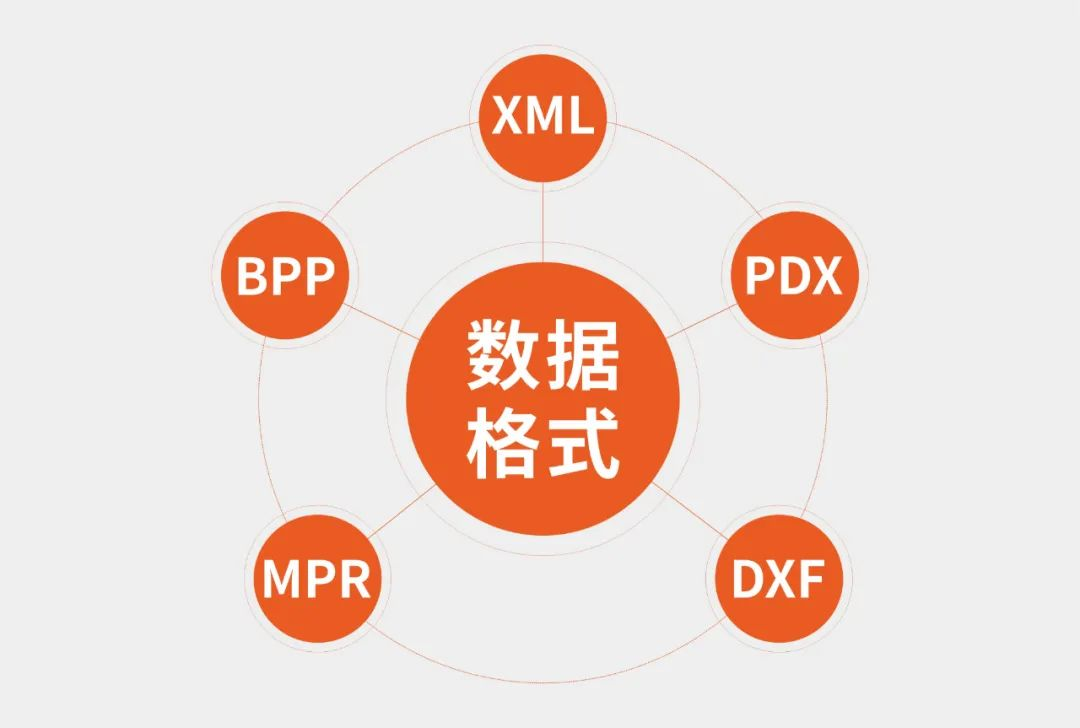

Compatible with Multiple Data Formats


Computer operation, convenient and efficient.
Convenient and efficient operation.reduce panel scratches and hit against.

technical parameter

model

Model

DN-612MR

Workpiece length

Panel Lenght(mm)

70-2800

Workpiece width

Panel Width(mm)

35-1200

Workpiece thickness

Panel Thickness(mm)

9-60

gripper maximum speed

Max Speed of Gripper(m/min)

135

Y/Z axis maximum speed

Max Speed of Y/Z-Axis(m/min)

75/30

Number of tools

Number of Drills

Upper vertical drill 12V + horizontal drill 8H + lower vertical drill 9V

Spindle power

Power of Spindle(kW)

2*3.5

total power

Total Power(kW)

20.65

Dimensions L*W*H

Overall Size L*W*H(mm)

5675L*2480W*2190H

Size and quantity of dust suction ports

Size&QTY of Dust Hood

200*1

150*1
