Focusing on high-end, intensive cultivation and quality, the products of the processing center are updated and launched.
release time:
2022-07-05

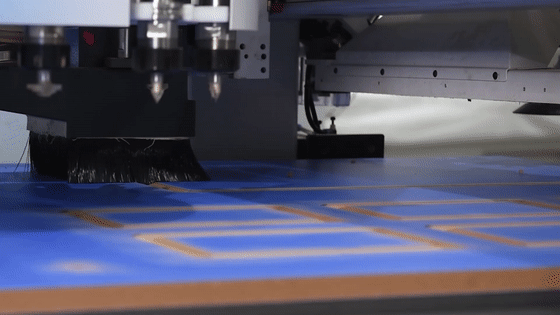

Double the power, fast positioning and efficient cutting
Double the power, fast positioning and efficient cutting
X/Y/Z maximum moving speed is 100/100/30 m/min
1.5kW high-power servo drives the moving speed of each axis to increase by more than 25%
The Z stroke is increased without fear of the thick plate process
The Z processing range is increased to 100mm, which can easily meet the needs of thick plate processing
technical parameter
|
model Model |
DN-3409B | DN-3409E/DE |
|
Maximum processing range Max.Working Size X/Y/Z（m/min） |
2860*1260*100 | 2860*1260*100 |
|
top speed Max.Moving Speed X/Y/Z（m/min） |
100*100*30 | 100*100*30 |
|
vacuum partition Vacuum Area |
7 | 7 |
|
Vacuum pumping speed Vacuum Capacity（m3/h） |
244 | 244 |
|
Tool magazine Tool Magazine |
-- | 12-bit servo tool magazine |
|
Size and quantity of dust suction ports Size & QTY of Dust Hood |
200*1 |
200*1 |
|
total power Total Power（kW） |
35.5kW | E：23.9kW DE：26.1kW |
|

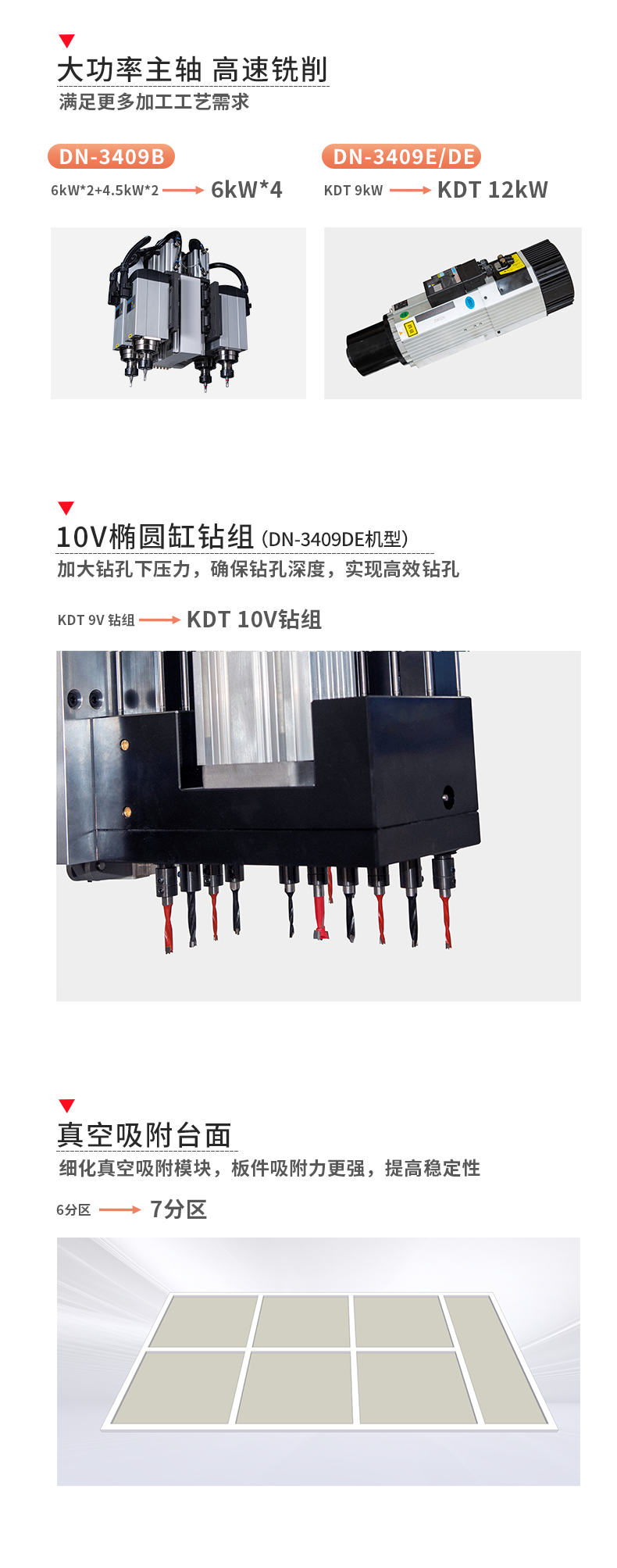

Spindle Main Spindle |
6kW * 4 |
KDT 12kW ISO-30 Spindle |
|
Drill group Drilling Head |
-- |
10V drill bag (DN-3409DE configuration) |
|
Dimensions L/W/H Machine Size L/W/H（mm） |
4260*2420*2415 | 4260*2420*2415 |
