Ease of use is not only efficient | High-speed edge banding machine WE-496G


release time:

2022-07-05

Core Highlights Dual-up sol system Double Up-gluing Unit Reserved PUR port Quickly switch two glues to meet the production needs of different glues for edge sealing Reserved PUR port, two kinds of glue can switch quickly, realize the production demand of different glue

1

Core Highlights

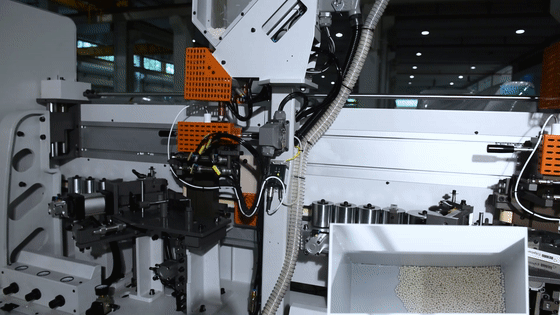

Dual-up sol system

Double Up-gluing Unit


Reserved PUR port, two kinds of glue can switch quickly, realize the production demand of different
glue


1

Automatic
gluing ensures normal operation of machine1

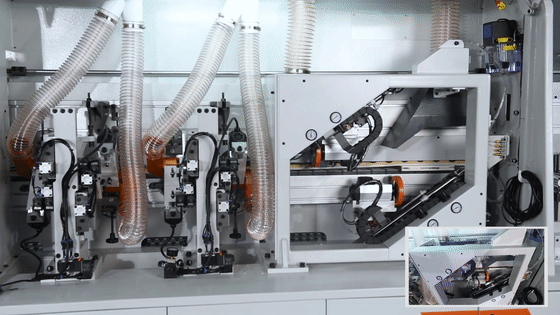

Visualized pneumatic trimming and edge scraping mechanism

Visual Pneumatic Trimming and Scraping Mechanism

Easier and quicker
micro adjustment for pneumatic trimming and scraping

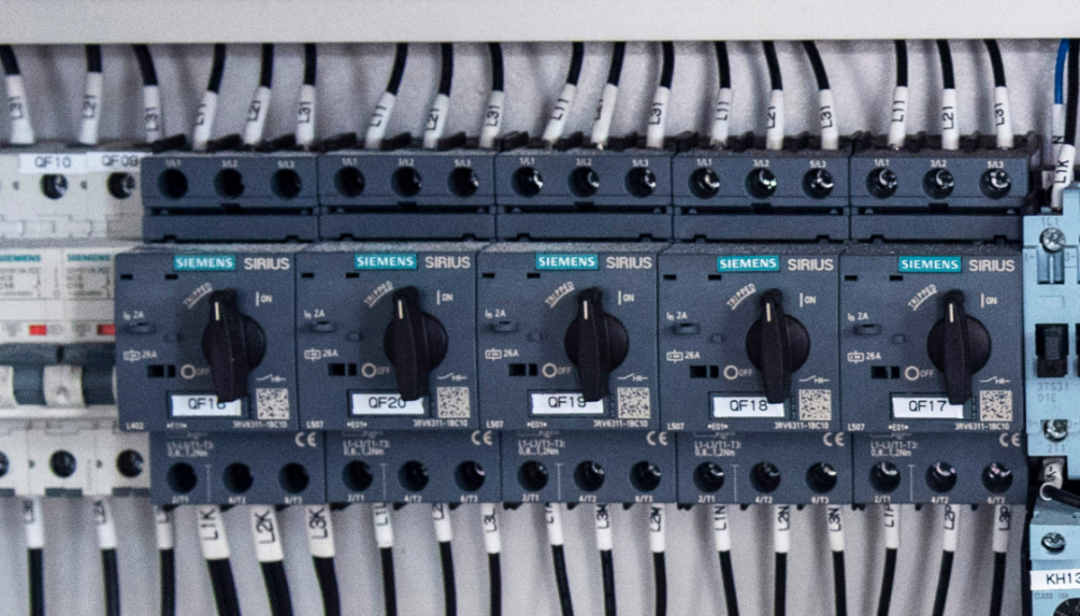

Siemens brand components

Siemens Electrical Components

Strong anti-interference ability, high equipment running stability
Features in Strong interruption-resistant and high stability in machining



Diamond trimming knife

Diamond Trimming Tool

High hardness, high wear resistance.
High-hardness, high wear-resistant

Configuration Features

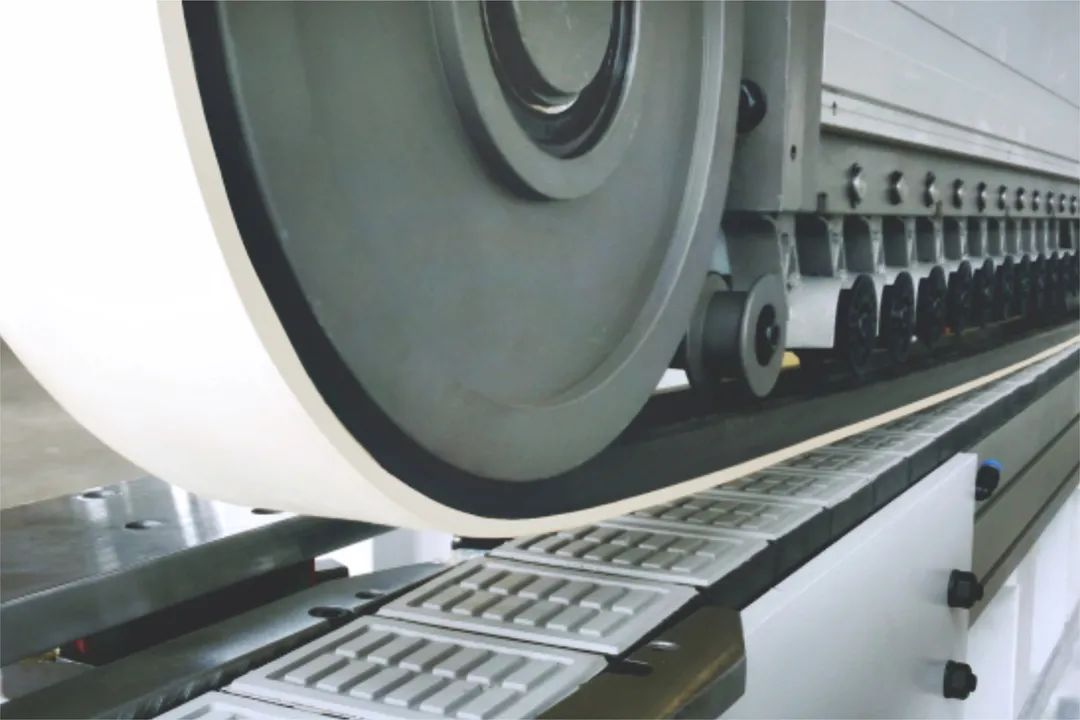

Track Binder/Belt Conveyer

Large contact area for pressing, better pressing
and positioning effect

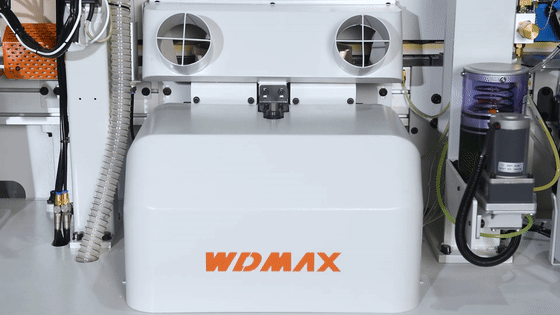

Pre-milling mechanism / Pre-milling Unit

Easily
milling panel edge, with better integrity and aesthetics

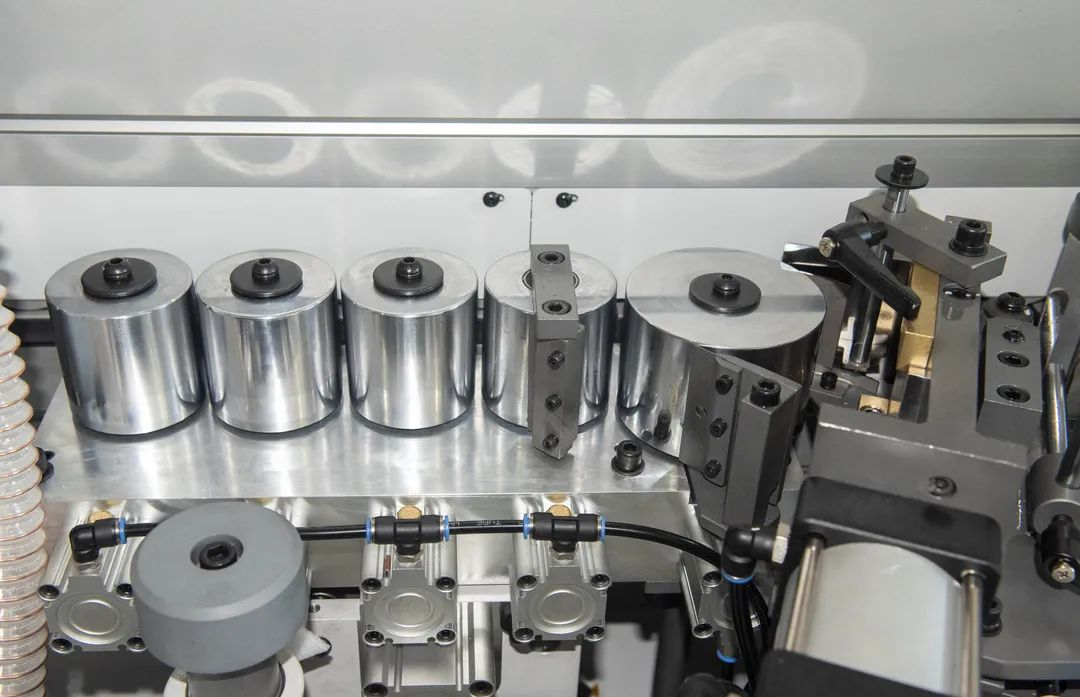

Five-wheel Pressing


Strongly press edge tape to improve edge banding effect

Double-Rail EndCutting Mechanism/Double-RailEndCutting


Realize
fast cutting both ends to improve accuracy and efficiency

Flat Scraping Mechanism


Removes
residual glue line for a clean and beautiful edging

Pressure Beam Positioning System


Quickly switch and process panels of different thickness, reduce adjustment time and improve efficiency
Pressure beam can be switched quickly according to panels of different
thickness to reduce adjustment time, which improves efficiency

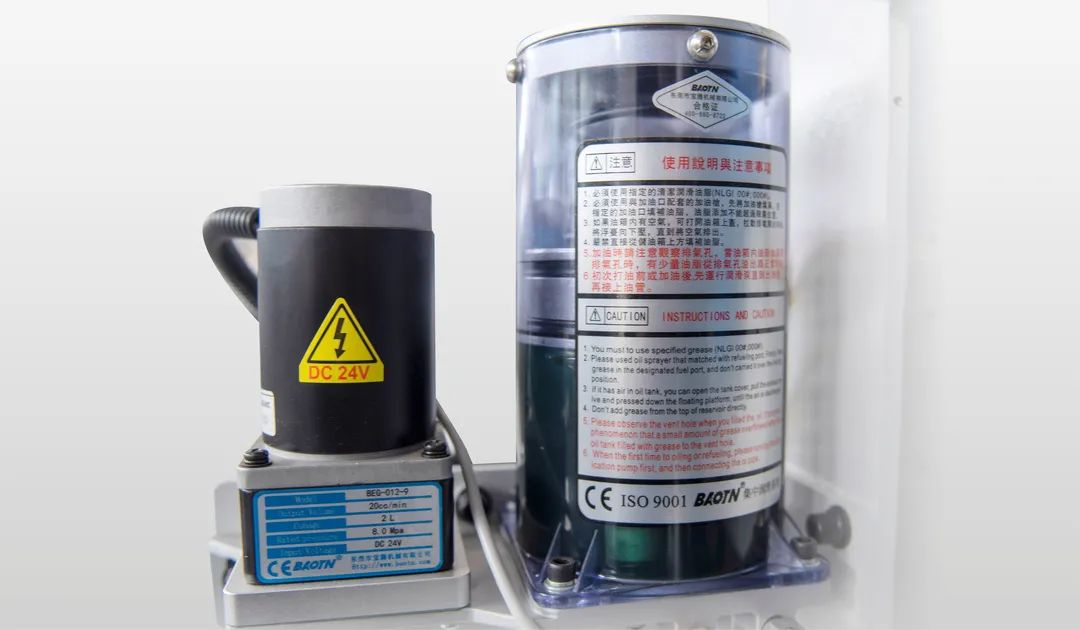

Auto Lubrication System


Automatic oiling
of the rail according to running time

technical parameter

model

Model

WE-496G

Feed rate

Feeding Speed(m/min)

20-26

Edge band thickness

Tape Thickness(mm)

0.4-3

Workpiece thickness

Panel Thickness(mm)

10-60

Workpiece length

Panel Lenght(mm)

≥120

Workpiece width

Panel Width(mm)

≥60

Minimum board size Edge sealing size is long side

Min.Panel(kW)

37.82

Dimensions

Overall Size Length (L) Width (W) Height (H) (mm)

11315L*990W*1960H

Size and quantity of dust suction ports

Size & QTY of Dust Hood

φ100*5+0125*6
